Serial RS-232 and Ethernet IP Communicator

Product ID CPV-iRS232IP-Com
List Price: $125.00
Price: $52.00
Ready RJ45 Ethernet patch cable for POS Port
POS/Cash Register this device will connect to

This hardware device is perfect for converting the PC or Point-of-Sale (POS) serial port and sending the text or transaction information to DVRs or NVRs that support text or transaction data over the Ethernet (IP). This device can also be for a PC or POS system that sends text or transaction information over IP and can be converted back to serial RS-232 at DVR, NVR, iTIVO-HD4k text overlay, or other devices side. This device is not limited to POS or ATM and can be used in many other applications.


* Send or receive serial RS-232 text or communication over Ethernet IP to another PC, DVR, NVR, XVR, router, or other devices.
* Send or receive text or communication over Ethernet IP and convert it to serial RS-232 for PC, DVR, NVR, XVR, router, or other devices.

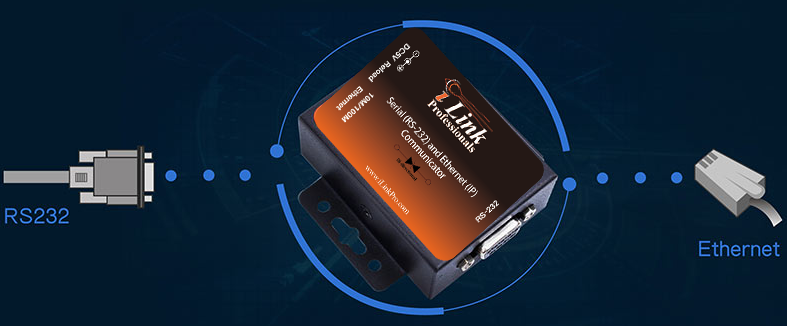

* Serial RS232 to Ethernet IP or Ethernet IP to Serial RS232
* Heartbeat packet mechanism to ensure the connection is reliable
* Support static IP or DHCP
* Support for different serial baud rates and Check bit
* Works over LAN and Internet
* Configurable local and remote TCP port or UDP port
* Support DNS function
* Upgrade firmware via network
* Web-based configuration
* Support virtual serial port and provide corresponding software (coming soon)

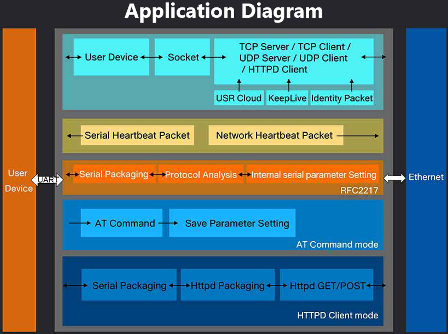

* Work mode supported: TCP Server, TCP Client, UDP Server, UDP Client, and HttpsD:

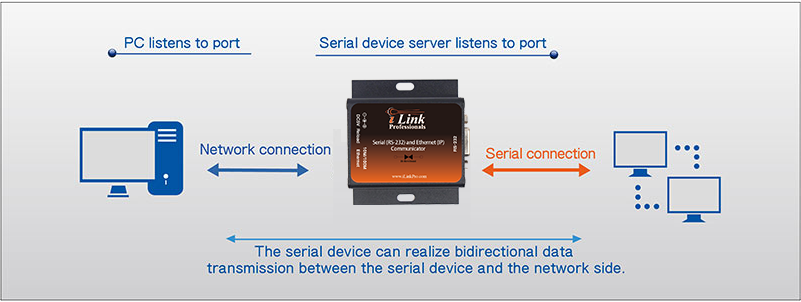

TCP Server

RS-232 to Ethernet converters iRS232IP-Com monitors the set port and waits for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP clients.

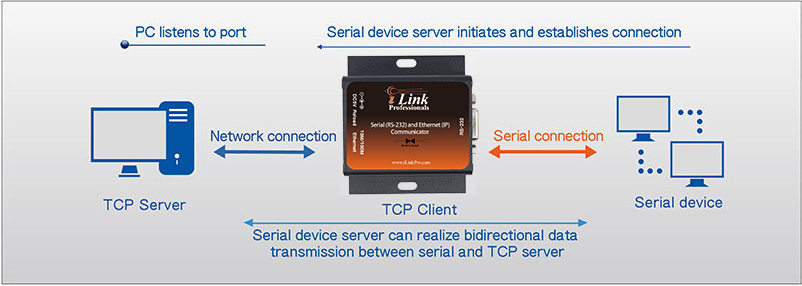

TCP client mode

RS-232 to Ethernet converters iRS232IP-Com will initiate a TCP connection to the destination IP address configured by the user, and iRS232IP-Com will continuously try to reconnect if establishing a TCP connection unsuccessfully. If the iRS232IP-Com establishes a TCP connection to TCP Server successfully, it can realize bidirectional data transparent transmission between TCP Server and the serial device.

UDP mode

RS-232 to Ethernet converters iRS232IP-Com will transmit serial data from the serial device to the target network device by UDP connection. iRS232IP-Com will listen to the port and transmit all received data to the serial device.

httpsD Client

RS-232 to Ethernet converters iRS232IP-Com supports https Client mode, which can transmit serial data to the https server in https format (GET/POST).

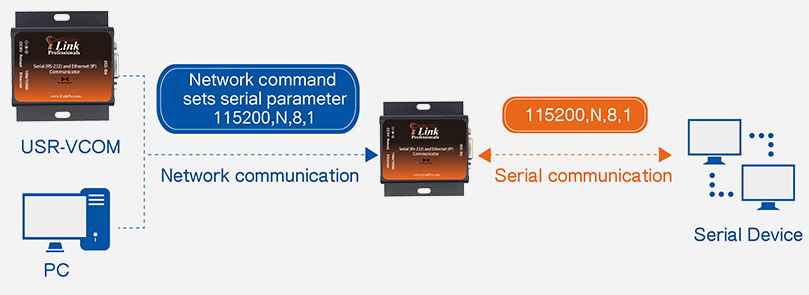

Synchronous Baud Rate

Dynamically change baud rate, data bit, check bit, and stop bit of serial device server via network command.

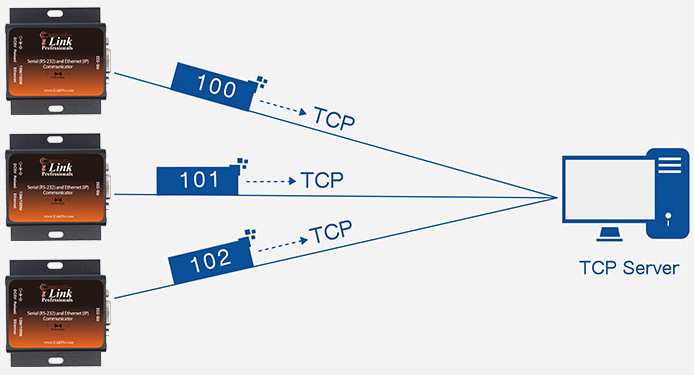

Identity packet function

When RS-232 to Ethernet converter iRS232IP-Com works as TCP Client, it can send an identity packet to the TCP server, which can be identified. Identity packets can be IMEI code, ICCID code, and user-editable identity packets.

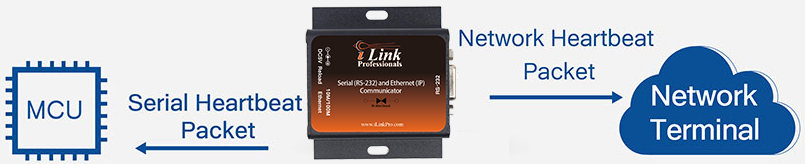

Serial & Network Heartbeat Packet

RS-232 to Ethernet converters iRS232IP-Com maintains the normal connection with the server by sending heartbeat packets regularly.

We also have this available in Software with similar functions for Windows PC, Windows-based POS,  Windows-based DVR, Windows-based NVR, or other Windows-based devices: https://www.ilinkpro.com/proddetail.php?prod=iPCCOM-IP.
