4 in 1 Mode via OSD - BNC Video output: BNC Coax AHD/TVI/CVI 1080p, 5MP or Standard Analog 960H/2000+ TVL Bullet IR 3.6mm Lens Camera

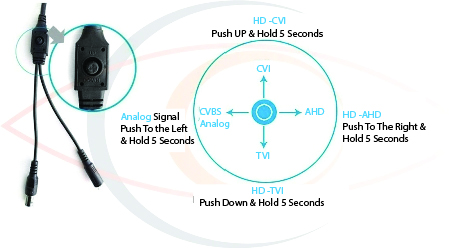

The CPV-HDIRDFIO-5KF is a 4-in-1 dome HD 5MP infrared surveillance camera with 3.6mm lens that captures a 90-degree field of view and supports the following video formats: AHD, TVI, CVI, and standard analog (CVBS). The AHD, TVI, and CVI video modes support 5 megapixels (2592 x 1944). The standard analog mode (CVBS) supports 960H resolution (960 x 480). The appropriate video mode can easily be selected by using the small joystick that is attached to the camera's OSD video cable. This camera is also NDAA Compliant and has an aluminum heavy duty exterior that was designed to withstand the toughest outdoor weather conditions.The CPV-HDIRDFIO-5KF has 12 built-in infrared LEDs that enables the camera to see in zero to low lit areas to up to 60 feet.
Model NO.
CPV-HDIRDFIO-5KF
Video Output Mode
AHD | TVI | CVI | CVBS
Camera
Image Sensor
K03 + FH8538M
Image Resolution
5.0 MP
Effective Pixels
2592×1944
TV System
PAL/NTSC
AHD/CVI/TVI: 5Mp@30fps
Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio
≥50dB
Scanning System
Progressive Scan
Lens
Focus Length
Board Lens 3.6mm
Focus Control
Fixed
Lens Type
Pixels
5M Pixels
Auto Iris Support
N/A
Night Vision
Infrared LED
14μX12PCS
Infrared Distance
20M
IR Status
Under 10 Lux by CDS
IR Power On
CDS Auto Control
Camera Features
Starlight
Day/Night
YES
OSD Menu Language
White Balance
AUTO / MANUAL
Gain Control
AUTO
Noise Reduction
DNR
Picture TVjustment
WDR
DWDR
OSD Support
Dip Switch
General
Waterproof
Dual Voltage
IR Cut Filter
Heater
Audio
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%,550mA
Dimension
￠94 x 69(H) mm
Weight
500g
(Power supply not included see Accessories) * Regular Stocking Item Download High Resolution PDF *Specification & Illustrations are subject to change without prior notice
