Samsung SAM4s RJ45 Serial Port POS Cash Register Text Inserter / Overlay on CCTV Video HD DVR with Cable

Product ID CPV-TIVO-HD-S4S5
ISBN 855686006262
List Price: $695.00
Price: $285.00
Ready BNC patch cable for Camera/DVR
Ready RJ45 Ethernet patch cable for POS Port

This item has been replaced with CPV-TIVO-HD4K-S4S5 click here to buy

Video Overlay/Text Inserter on CCTV Video HD DVR w/ Samsung SAM4s RJ45 Serial Port Cable

The CPV-iTIVO-HD text interface device takes the data transactions from your Samsung SAM4S Series Cash Register and displays it on top of your normal video. Once a transaction is started, data is generated from the SAM4S Cash Register and it is sent to the text interface device to overlay this data on top of the normal camera picture.This is a perfect product to have with ATM theft and fraud becoming such an ascendant concern. The CPV-TIVO-HD links the data with the picture so that on the monitor screen you will see not only the cashier and the product being sold, but also the price charged by the clerk for that product.

This CCTV security camera POS Text Inserter/Overlay device works with CCTV coax AHD,TVI, CVI & CVBS analog camera, standard analog DVR or HD DVR/NVR/XVR and VCR.

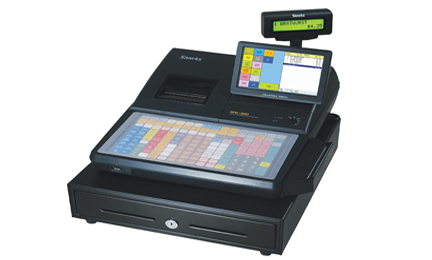

Live Demonstration Connecting the CPV-TIVO-HD to the Samsung SAM4S 5XXX Series Register

Key Features:

  • Displays up to 10 lines
  • Displays up to 40 characters per line
  • Programmable text sizes, gray scale, background, and transparency
  • Text can be positioned anywhere on screen
  • Programmable scrolling speed, pause and screen clear timers
  • Blinking text and LED on flagged transactions (exceptions)
  • 16 programmable flagged/suspicious transactions (For Example: Void, No Sale, Cancelled, etc.)
  • Up to 4000 transactions and exceptions logging with time stamp (minimum 500, optional)
  • 2 trigger inputs
  • 2 alarm outputs
  • Cash drawer monitoring
  • Video loss and com activity LEDs for ease of installation and fault finding
  • Host/PC programming
  • HD model supports up to1080p HD video standards.

CPV-iTIVO-HD is compatible with most Point-Of-Sale (POS) Systems, Cash Registers and ATM (For example: Verifone Ruby 1, Ruby 2, Dresser Wayne Nucleus, Gilbarco Passport, Epson, Sharp, etc.).

CPV-iTIVO-HD Text Inserter Connected With Various POS Videos

CPV-iTIVO-HD Serial Interfaces can make the connection between:

  • Cash Registers POS/EPOS
  • Computers
  • Printers
  • POS Systems
  • ATMs
  • Barcode Readers
  • Radar Guns
  • Scales
  • GPS Systems
  • Access Control Panels
  • Most RS-232 devices .....

Package Includes


Pigtail Cat Cable

12VDC Power Supply

RS232 Serial to RJ45 Adaptor w/ Cable

 *  Regular Stocking Item
Download High Resolution PDF

Cash Register / POS Compatibility List  - Windows Programming Software -  Config files 720p 1080p AHD CVI TVI.zip - Wiring & Cables - User Manual - Quick Start Guide - Software Config Manual
